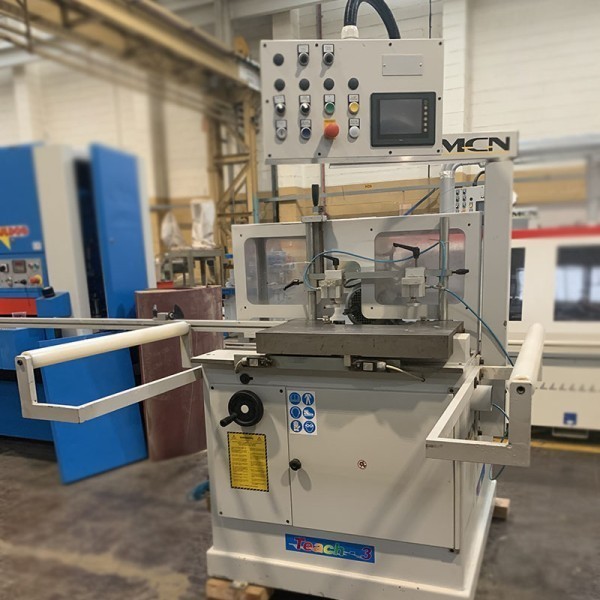

MCN Teach-3 Door Lock Mortise & Drilling Machine 2008 CE

Heavy duty door lock mortising machine with NC control.

Automatically machines mortise lock and faceplate with rotating tool change
and automatic sequenced vertical boring for handle and keyhole.

Hinge recessing with second operation.

Length of table 600mm

Width of table 300mm

Rotating head 180 degrees

Maximum slot length 250mm

Maximum slot depth 120mm

4hp routing motor at 0-6000 rpm

Vertical boring head 3hp

Vertical stroke 120mm.

Complete with extension tables each side and 1 stop bar with flipover stop

Mechanical Vertical Setting

Weight 700kg

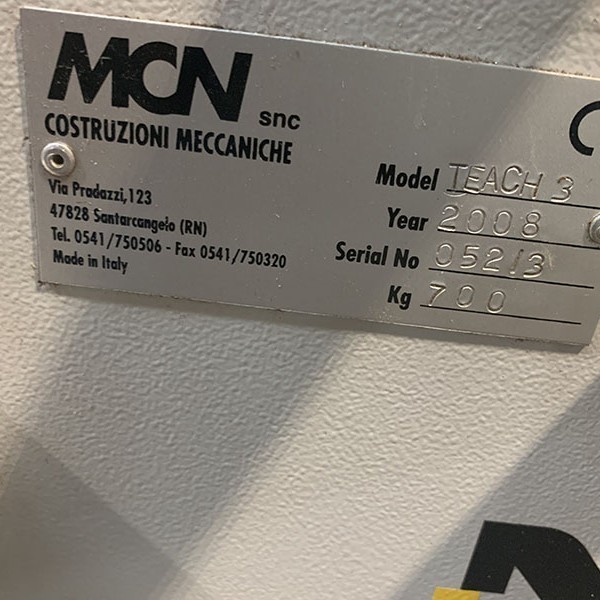

Serial number 05219

Year : 2008 CE

https://youtu.be/lbYcjHF7rCA
