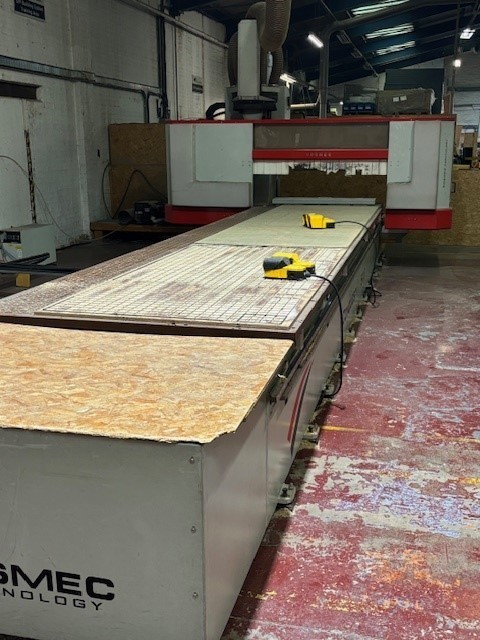

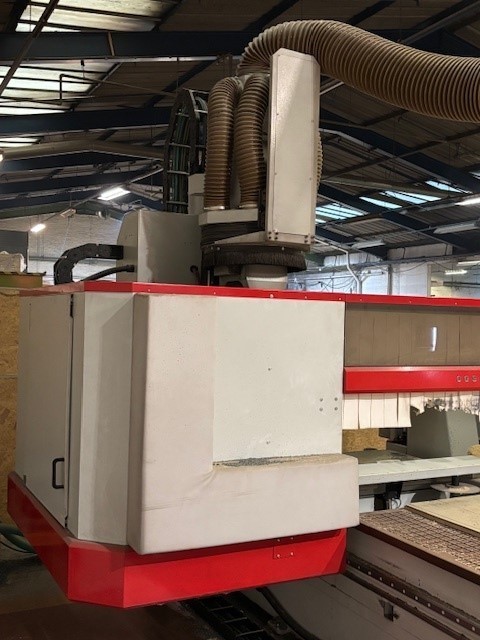

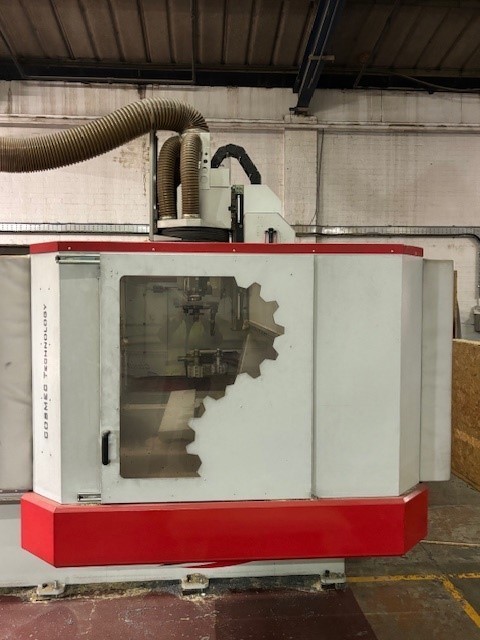

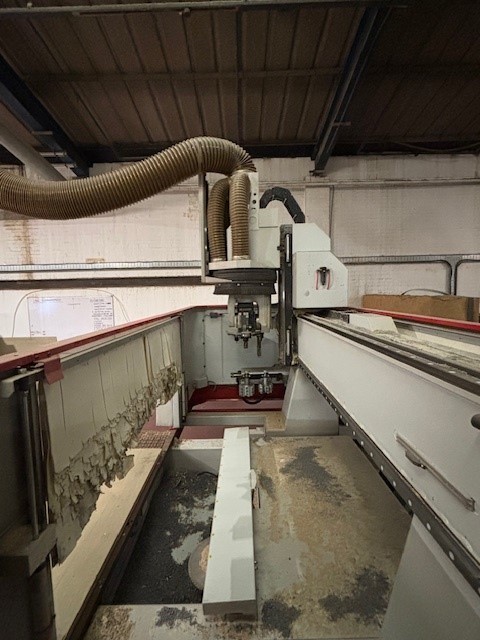

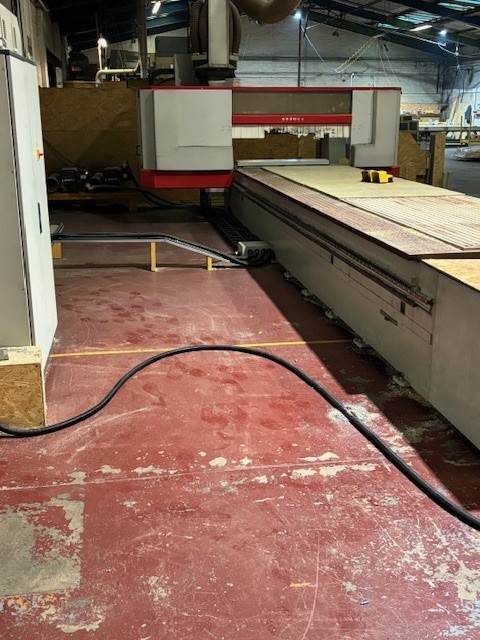

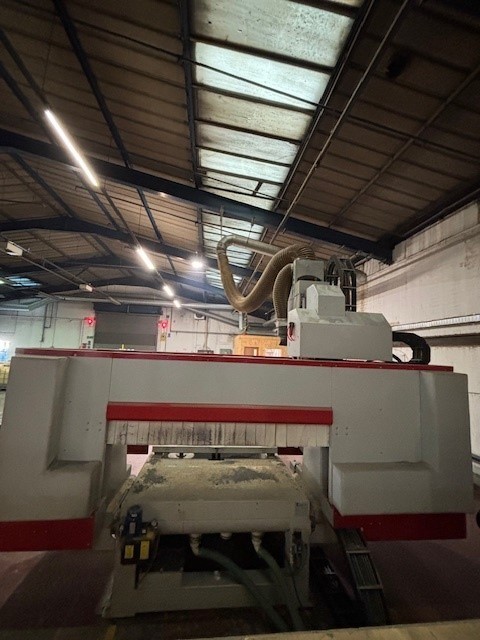

CNC machine with fixed table and dual drive gantry, five axis interpolating electrospindle. Particularly suitable for SIPS panels, woodworking, plywood, MDF, plastics and thermo formed prodcuts.
6120mm x 1605mm Working field in X / Y axis
6850mm X axis stroke
1970mm Y axis stroke
1080mm Z axis stroke
Max height / panel passge 700mm
C axis rotation + / - 360 degrees

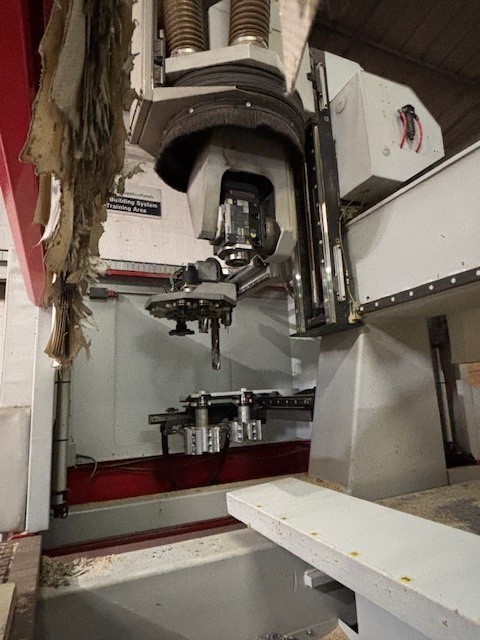

12kw electrospindle with programmable speeds from 500 - 22,000 rpm
12 Position automatic toolchanger
Auxiliary 2 position toolchanger
250m3/hr vacuum pump
2 Field phenolic working table suitable for vacuum cups
Hoist points to fix jigs [ series of threaded holes on table for mechanical fixing ]
Set of 3 disappearing stops
OSAI Series 10 CNC control including [ for example ]
PC with Windows XP [ or higher ]
Interactive programming
Paramteric programming
3D interplolation
Cutter radius compensation
Extraction requirements 2200m3/hr
Weight 5235kg

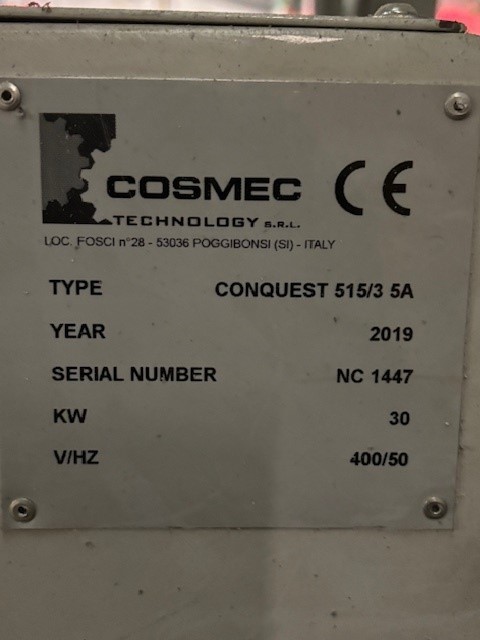

Year - 2019 CE

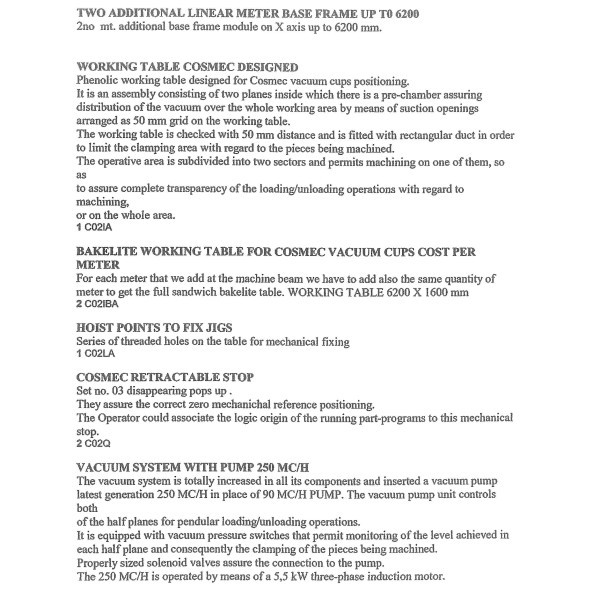

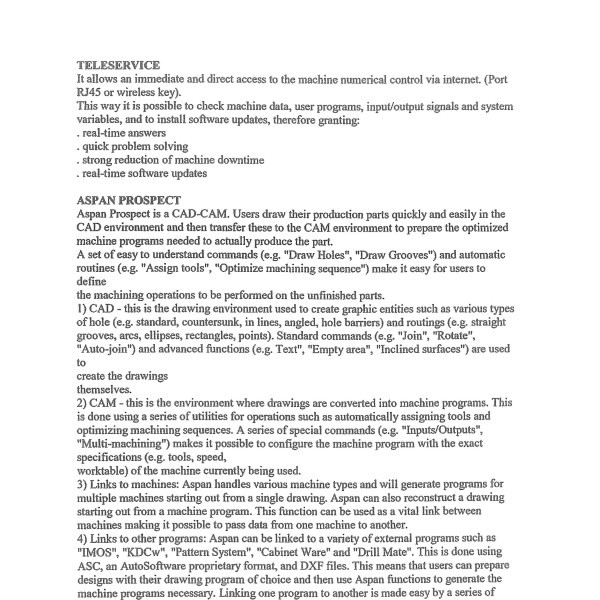

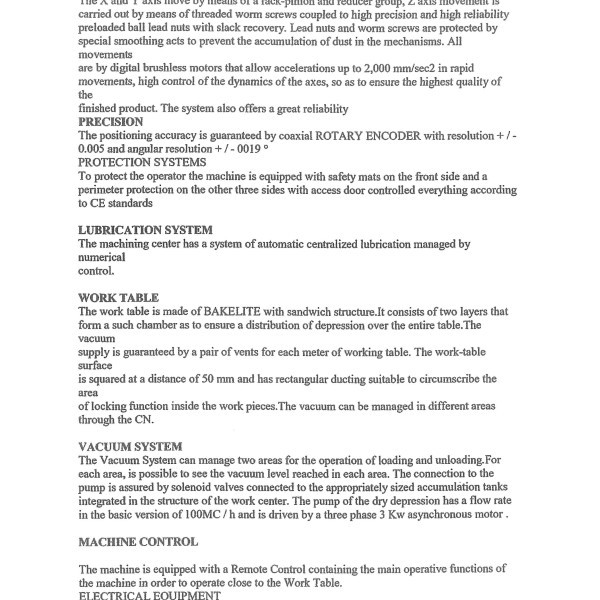

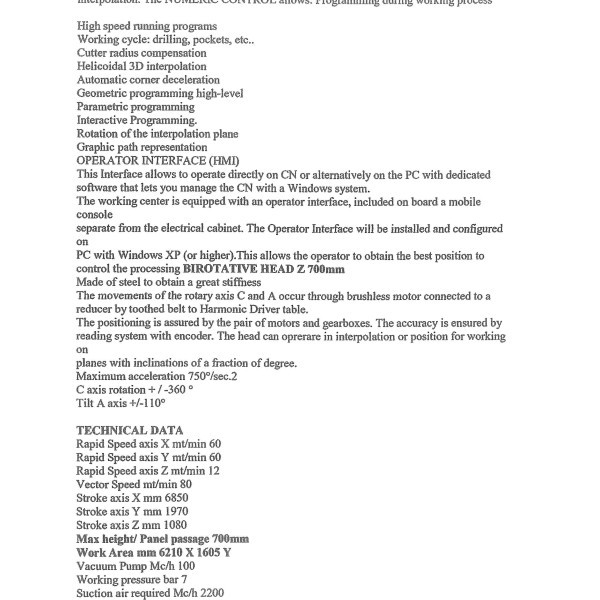

FULL ORIGINAL SPECIFICATION SHOWN IN IMAGES
