INNOVATIVE WOODWORKING MACHINERY & EXPERTISE
Automatic loading and unloading
Advanced machining capabilities
Ideal for volume production

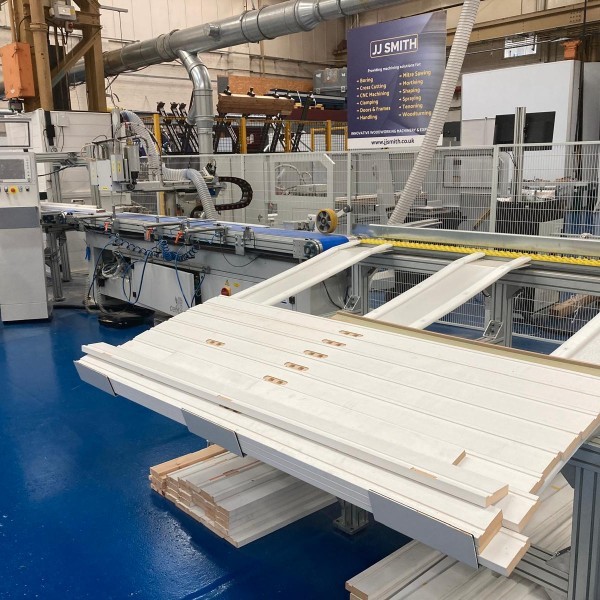

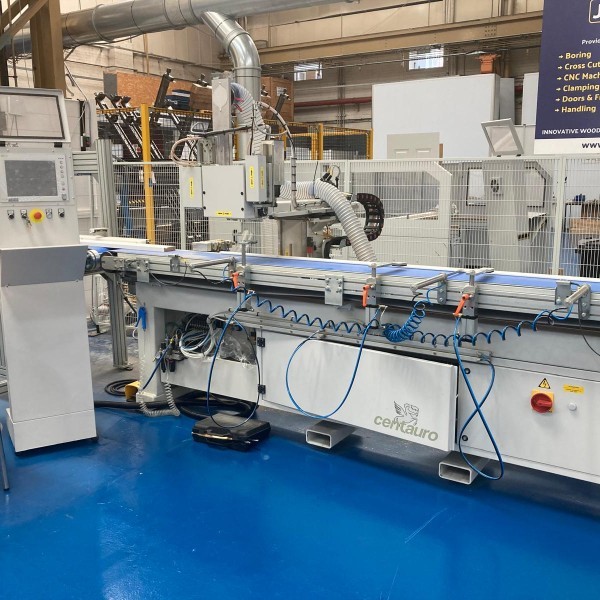

Elevate your door frame lining production with the Centauro Alfa Jamb, a state-of-the-art machine designed for the automatic loading, machining, and unloading of door frame linings and jambs. Combining precision, efficiency, and user-friendly technology, the Centauro Alfa Jamb is the ultimate solution for door frame manufacturing.

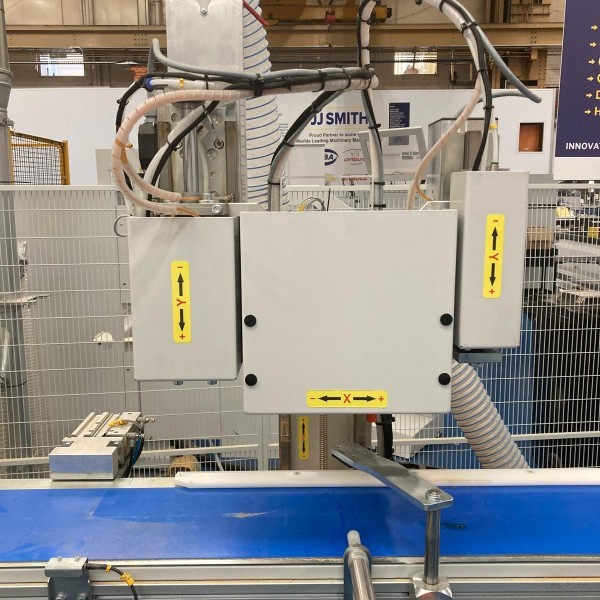

The powerful CNC router head is capable of performing both vertical and horizontal machining operations. This versatile router head excels in hinge and lock plate recessing or slotting, ensuring each cut is executed with precision and consistency. Additionally, a specialised small router is included for spot drilling hinge screw holes and squaring the corners of hinge recesses, enhancing the accuracy and finish of your products.

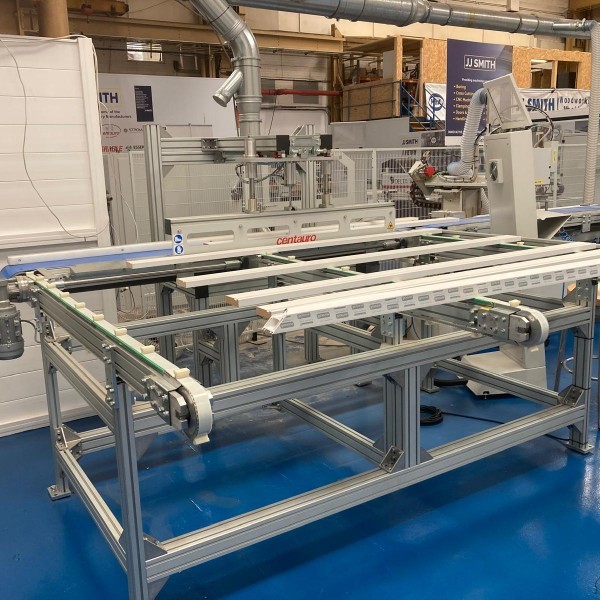

The Alfa Jamb automates the entire process from loading to unloading, allowing your operators focus on higher-level tasks while the machine handles the repetitive work. Programming is simple thanks to the latest generation TOP12-S color graphic touch screen controller. This user-friendly interface features pre-installed electronic macros, allowing you to quickly set up and adjust machining operations with ease.
Specification
Technical Information
X Axis stroke 2800mm
Y Axis stroke180mm
Z Axis stroke 150mm
Suitable for Jamb dimensions of 2400mm x 200mm x 75mm
Router / Milling head 3.3kw, ER25, 0 to 18000 rpm
Pilot Hole Drilling Head 2.2kw ER 25, 0 to 18000 rpm
3 x pneumatic vertical workpiece clamps, automatically activated through the program
3 x pneumatic horizontal workpiece clamps, automatically activated through the program

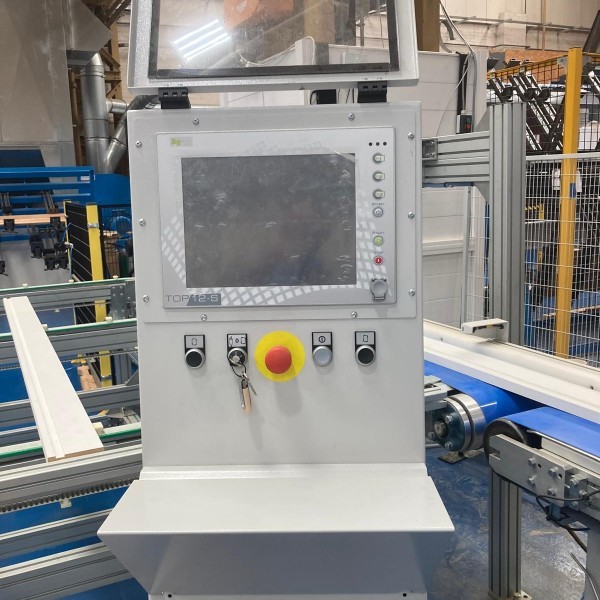

Top 12-S industrial touch screen control 12" with simple macro programming
CE safety perimeter guarding to sides / rear with a front light beam curtain
Dust extraction connection 120mm
Pneumatic supply 6 Bar
Overall Dimensions
9644 x 1844mm
Overall weight 2000kg
Total load 5.6kw
Year - 2023 CE.
Condition - As new, only used for showroom demonstrations
