INNOVATIVE WOODWORKING MACHINERY & EXPERTISE

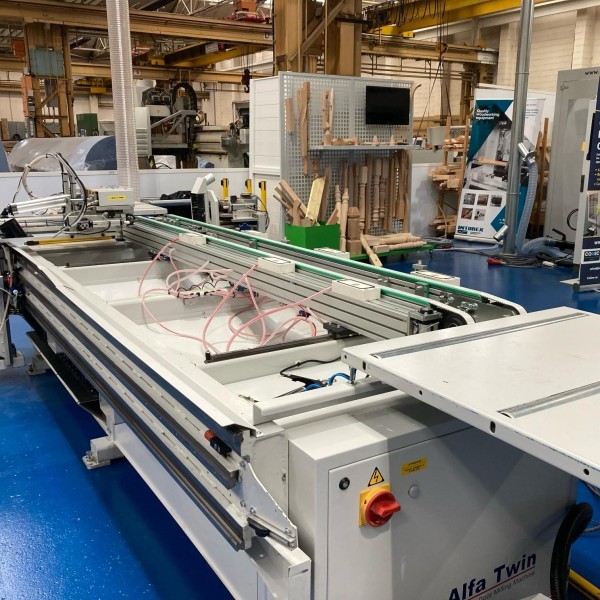

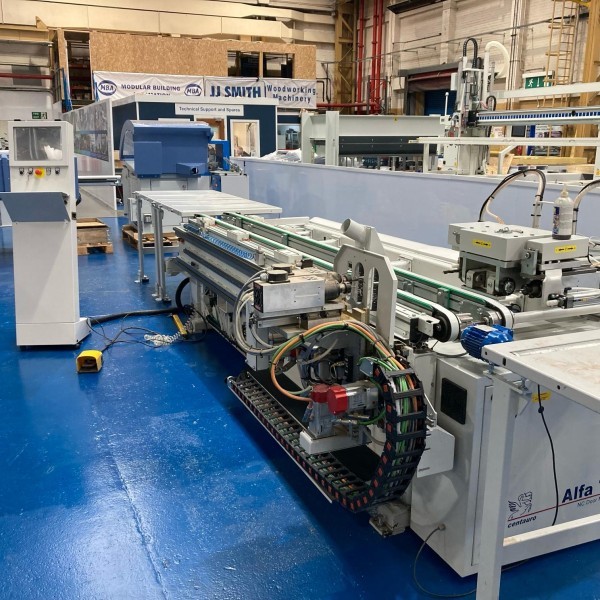

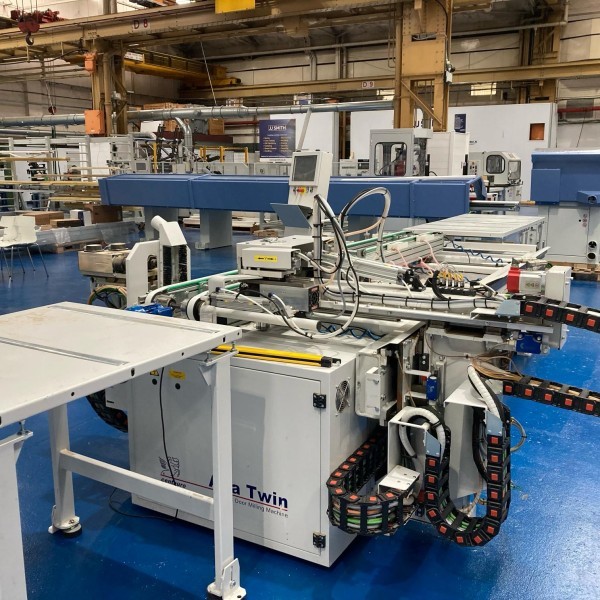

For machining of hinge recesses, lock keeps, lock slots,key slots, handle holes etc. Simple and quick programming. Vertical and horizontal machining. Typical machining time for a complete door 2 minutes.
Axis capacity - X 2800mm, Y 180mm, Z 150mm.
Maximum / Minimum door width 950mm / 650mm
Max door thickness 90mm
X axis positioning speed 35m/min
6 x Vaccum Cups for holding door in position
Electronic Touch Screen

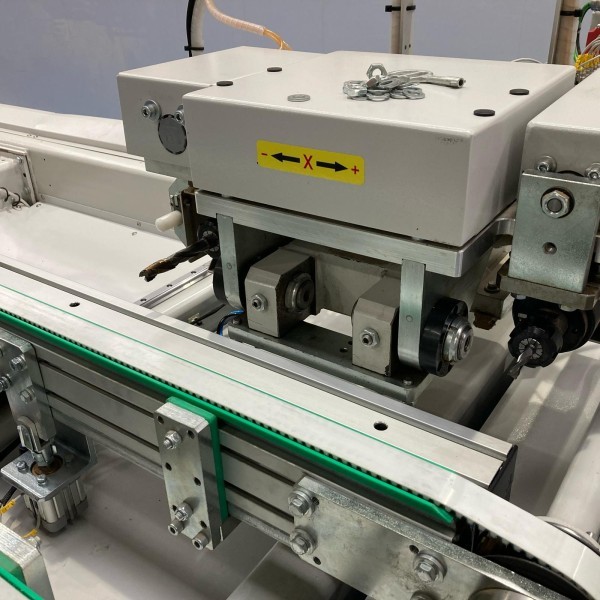

Lock Side Milling Motor 3.3kw (ER32) 18,000rpm

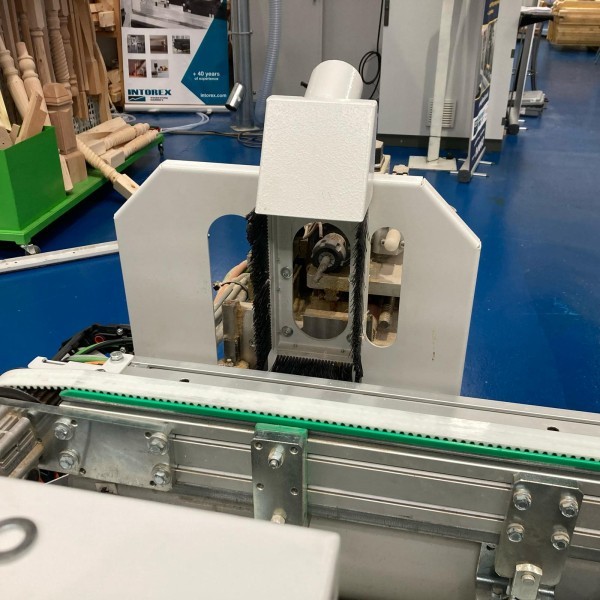

Hinge Side Milling Unit 1.5kw (ER25) 12,000rpm
Manual positioning of door thru idle rollers
Retractable head stop for door positioning
CE Safety guarding

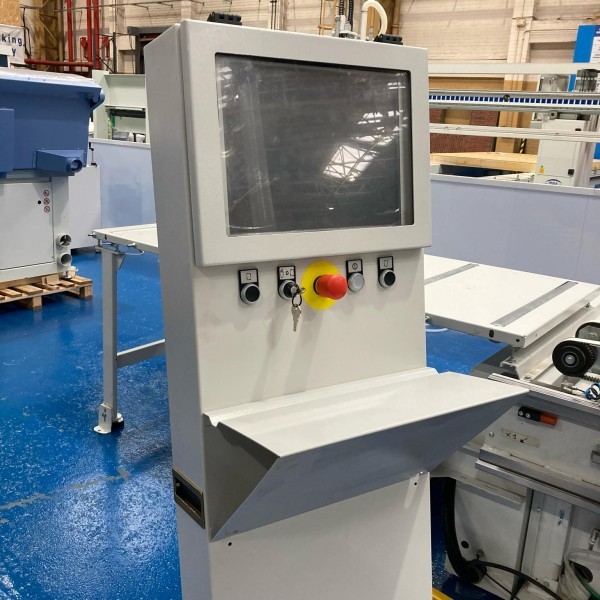

Remote control cabinet with 15" touch screen. Easily positioned to suit operator
Options include:
Motorised Belt for Taking door in / out
Pilot hole Drilling hinge side
Pilot hole drilling lock side
Infeed / Outfeed manual roller tables
Year - 2022 CE Ex Demonstration
