About this Product

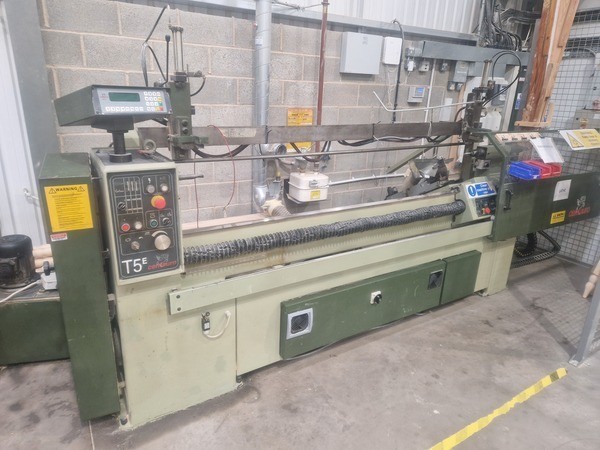

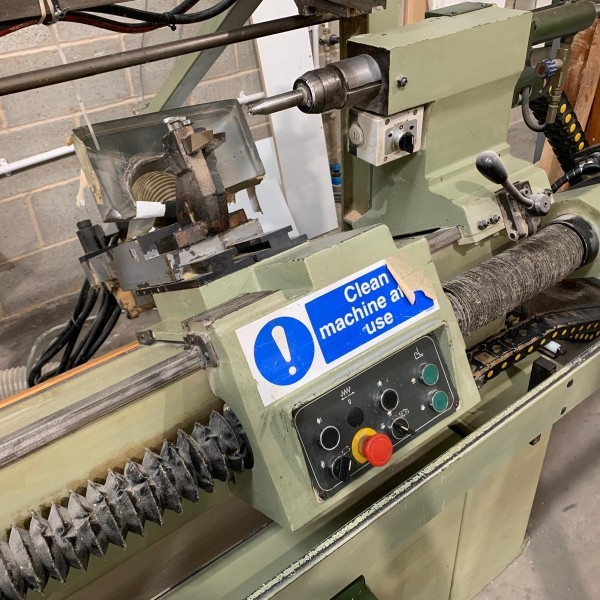

This model of machine is fitted with 2 independent sensitive hydraulic copy units that can work from either a template or sample. The first cutter would be set for roughing out, the second one for the finishing cut that will enable a component to be produced in one pass. There is still the possibility to programme a second automatic pass of the finishing gouge for heavy work. The machine is also equipped with hydraulic tailstock unit and hydraulic operated back knives.

The unique feature of the T5E is saddle movement by precision recirculating ball screw with programmeable electronic control to the feed speed to ensure optimum turning flexibility and quality. This precision feature allows the operator to perfectly control the saddle advance in relation to the complexity of the turning and the optimized saddle speed can then be stored within the memory of the machine.

2000mm turning capacity between centres

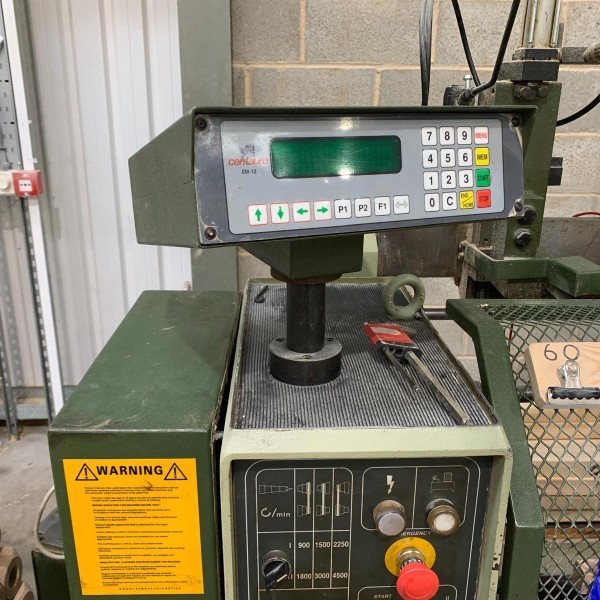

NC electronic control to saddle movement with infinitely variable feed 0 to 12m/min

Two speed 4/5.5hp motor giving six spindle speeds 900-1500-1800-2250-3000-4500rpm

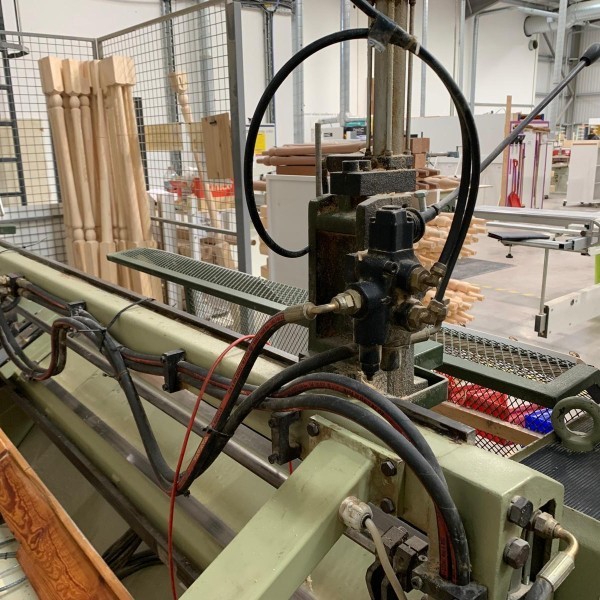

Two Hydraulic Copy Units each mounted with horizontal vee type gouges hss

2 Vertical back slides with knives for making dowel ends

Max 95mm x 95mm square section with revolving Steady

Max 175mm x 175mm square section without Steady

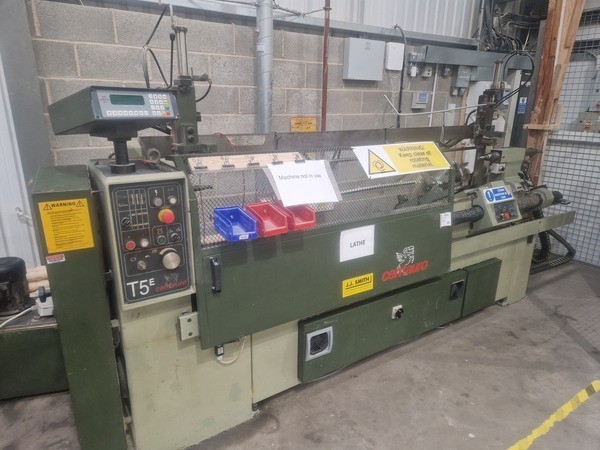

Sliding guard for operator protection

CE safety equipment

Year - 1998 CE

Available June 2025
