Martin T12 Heavy Duty Spindle Moulder with Sliding Table - 2012 CE

THIS IS ONLY PROVISIONAL SPECIFICATION. SPEC NEEDS TO BE CHECKED FULLY ON ARRIVAL.

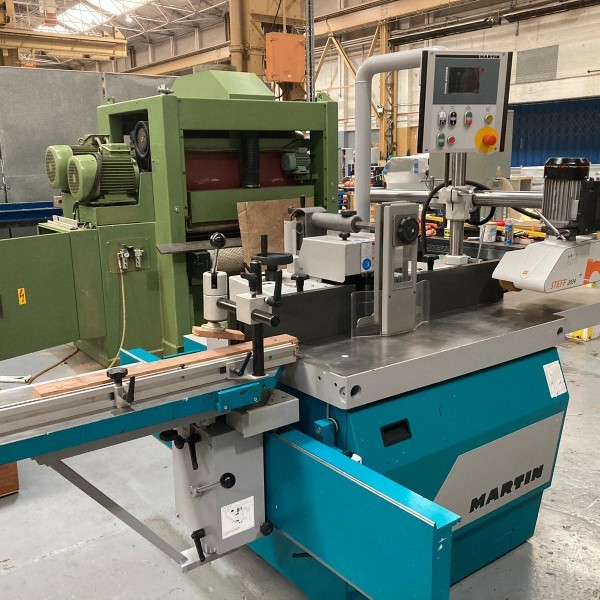

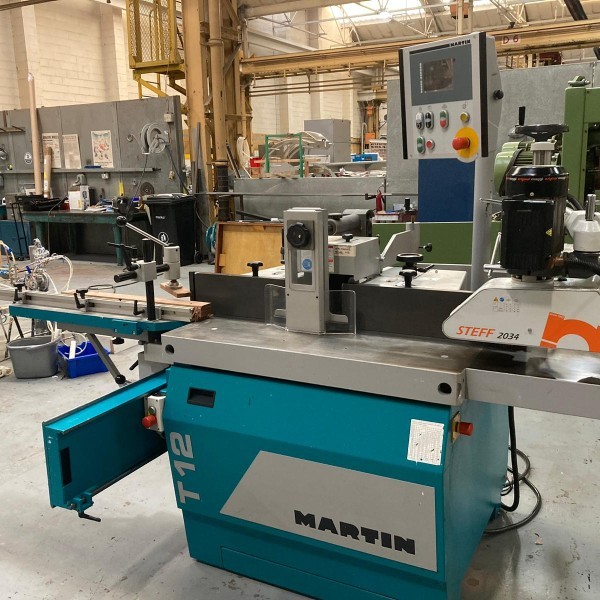

A very high quality German designed and built spindle moulder from leading manufacturer Martin. The machine although compact in design has a number of premium features as standard including the heavy composite frame to ensure maximum stability along with the 5.7" TFT colour touch screen control unit. This is positioned economically at eye level and helps reduce set up times markedly. From this unit the operator can easily set the required height of the spindLE. In addition the tool data memory gives the facility to store up to 500 different tools, automatically recalling the spindle height position, speed and other program data for the particular tool selected. Other standard features include a precision fence assembly, with hand wheel adjustment and digital display in the control unit, electronic soft braking device for the spindle motor and 'Dornfix' quick shaft change system.

Specification

- Machine base in modern composite frame.

- 1050 x 750 x 95mm heavy ribbed cast iron table with precision machined surface.

- Table height 900mm.

- Table openings 255/205/161/106 / 74mm dia.

- Motor power 5.5kw (7.5hp)

- Spindle RPM 3000/4500/6000/8000/10000 RPM.

- Cutter spindle 35mm diameter. 140mm working height. With DornFix quick change system, controlled motorised vertical adjustment and integrated mechanical lock for tool change.

- Spindle stroke 150mm - with repeat positioning accuracy of +/- 0.025mm

- Fence assembly adjustable by handwheel with positioning digital display in the control panel. Adjustment of fence jaw right with handwheel according to scale.

- Martin fence plates made from hard coated aluminium. Movement range overall of fence -6 to +125mm. Movement range of fence jaw (right) -10/+10mm. Display resolution 0.05mm

- Tool dia max 250mm with fences and can be lowered under table. 350mm max with option.

- Centralised lubrication.

- Dust extraction at fence 120mm / extraction port below table 120mm.

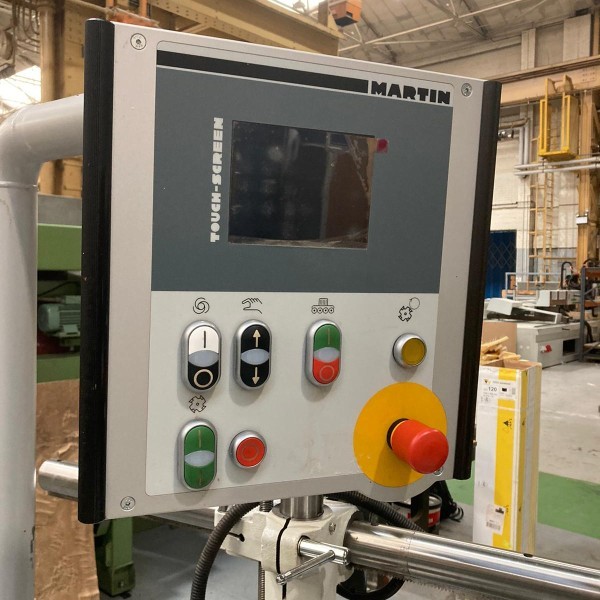

Control panel at eye level. Touch screen 5.7" colour TFT

Control via POWERPC the standard Linux operating system.

Main features include:

* Electronically controlled spindle height with full integration of the cutting height in the control and program memory. Repeat positioning accuracy +/- 0.05mm.

* Integrated display of fence position cutting depth.

* Expandable with following controlled axis (max 3) - cutting depth (total fence) - fence jaw right.

* Easy to handle display and intuitive operation of all axis on the home page.

* Conversion and digital display of the tool position (cutting height / cutting depth) in relation to the table and fence based on tool data stored.

* Tool data memory for up to 500 tools and 3 reference points can be stored for each tool. Thanks to the new and innovative tool assistant it has become very simple to enter / use adjustable tools.

* Program memory for 100 tool positions of all digitally displayed axis.

* Simple tool and program selection through alphanumeric search function.

* Display of rotational speed, tool name, spindle rings and current cutting speed.

* Fully automated referencing of cutting height.

* Selection of rotation direction.

* Diagnosis and help memory with operating information.

* Integrated calculator with axis related memory option along with integrated operating time counter.

* Software key switch / password protection for up to 2 users.

* USB interface for back up and transfer of program tool data.

Fitted with the following options :

Table extension on right side only

Sliding table with 1400mm operating range, height adjustable work table, tiltable 45 degrees to both sides, foldable for space saving when not in use. Complete with cross cut fence can be angled to 65 degrees on both sides with 3 x stops (workpiece length up to 1.75m). Eccentric clamp and tenoning guard for tools up to 300mm dia.

3 Roller Automatic Feed Unit

Spare 40mm diameter spindle

Serial nr - 520288

Year - 2012 CE
