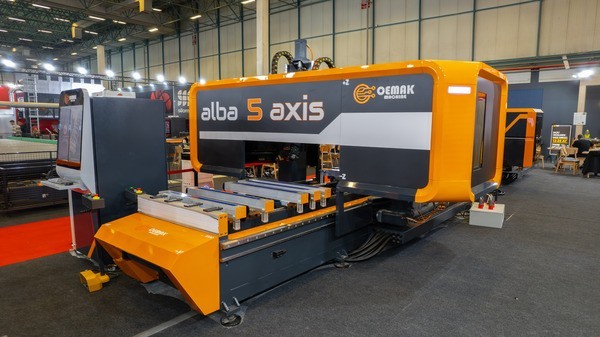

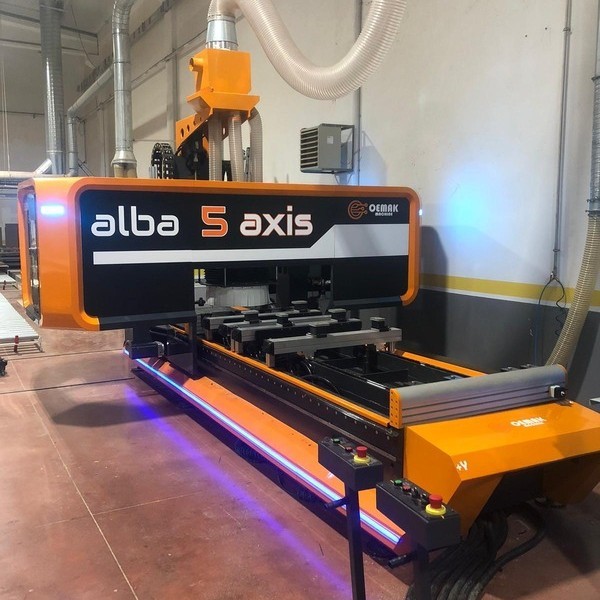

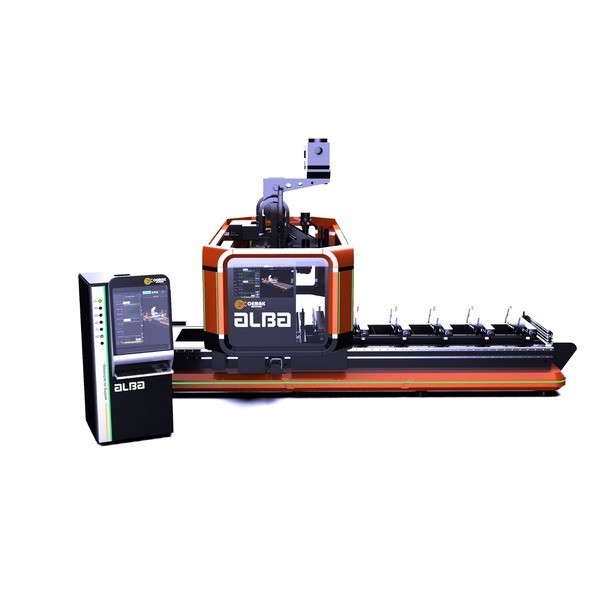

The Oemak Alba 5-axis CNC Machining Centre offers the highest level of versatility and flexibility, ideal for door and frame manufacturing, furniture components and composite materials.
The Oemak Alba 5-Axis CNC Machining Centre is a state-of-the-art, high-precision machine designed to meet the demands of complex and intricate machining applications. Offering advanced 5-axis capabilities, it allows for the simultaneous movement of the tool and workpiece along multiple axis, providing enhanced versatility and accuracy. Ideal for the industries of general furniture, joinery, door and door frames and composite materials, the Oemak Alba excels in producing parts with complex geometries and tight tolerances. Equipped with robust construction, intuitive controls, and high-speed performance, this machining centre ensures superior quality, efficiency, and reduced cycle times.
The Oemak Alba 5-Axis CNC Machining Centre is a state-of-the-art, high-precision machine designed to meet the demands of complex and intricate machining applications. Offering advanced 5-axis capabilities, it allows for the simultaneous movement of the tool and workpiece along multiple axis, providing enhanced versatility and accuracy. Ideal for the industries of general furniture, joinery, door and door frames and composite materials, the Oemak Alba excels in producing parts with complex geometries and tight tolerances. Equipped with robust construction, intuitive controls, and high-speed performance, this machining centre ensures superior quality, efficiency, and reduced cycle times.
Technical Information
With 6 Console / 18 Vacuum Blocks
Working Area: 1300mm x 3200mm
Z Axis Distance: 440 mm without Vacuum Blocks
HSD - Water Cooled Spindle Motor Power: 11-13 Kw HSK F63 HSD (Chiller Included)
HSD - Spindle Motor Speed: 20,000 Rpm
Beckhoff - X Axis 5+5 Kw Absolute Servo Motor
Beckhoff - Y Axis 4 Kw Absolute Servo Motor
Beckhoff - Z Axis 5 Kw Absolute Servo Motor
M Axis Motor: 1.5 Kw Absolute Servo Motor
HSD - A Axis Motor: 0.5 Kw Torque Motor
HSD - C Axis Motor: 0.5 Kw Torque Motor
X Axis Speed: 60 m/min
Y Axis Speed: 60 m/min
Z Axis Speed: 25 m/min
M Axis Speed: 120 °/sec
C Axis Speed: 75 °/sec
A Axis Speed: 75 °/sec
1 Piece 140 M3 Vacuum Motor. Busch, Schmalz or Becker
Rotary Magazine Unit: 8 Pieces
Fixed Magazine Unit: 8 Pieces
Automatic Tool Length Measurement
HSD - 10+3+1 Multiple Drilling Unit
