A versatile 4-axis CNC machining centre for sanding and shaping complex furniture parts in high volume production.

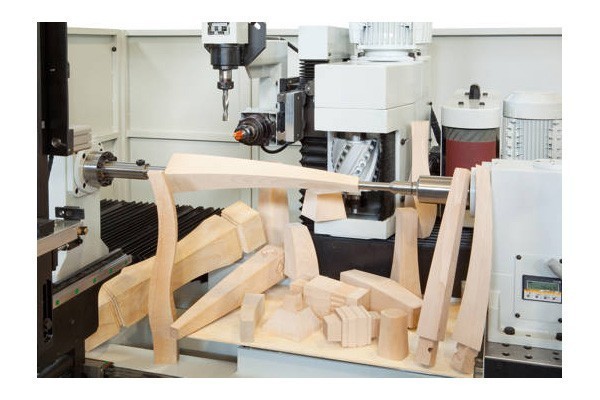

The Intorex TC1000 is a versatile 4 axis CNC machining centre designed for the efficient production and sanding of shaped furniture parts. Whether you're running batch or high-volume production of components like table legs, sofa feet, or other complex furniture pieces, the TC1000 offers exceptional performance, precision, and ease of use.

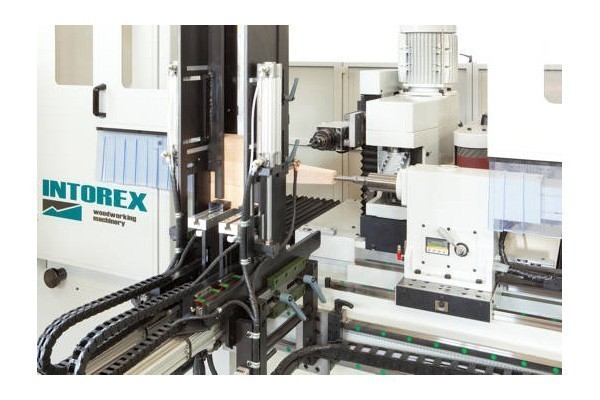

Equipped with an automatic hopper feed loading system, the TC1000 ensures continuous, hands-free operation, streamlining the production process. Its advanced capabilities include shaping, slotting, sanding, and drilling, making it the perfect all-in-one solution for your furniture part machining needs.

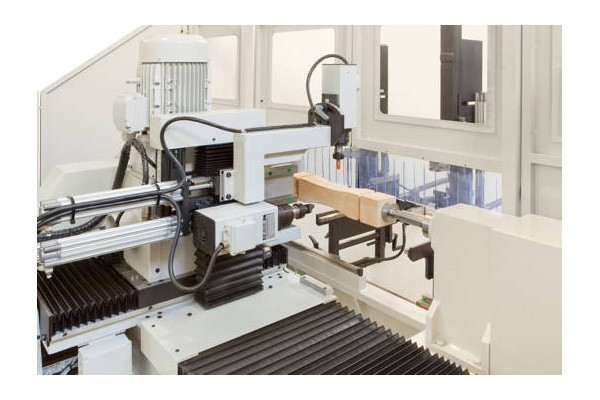

As standard, the machine is fitted with a milling head, a horizontal sanding head, and both vertical and horizontal router heads, providing flexibility for slotting or drilling operations. Thanks to its design, which allows the part to be worked between centres, the TC1000 can machine and sand all faces of a component, delivering a smooth, high-quality finish.
The Intorex TC1000 is a versatile 4 axis CNC machining centre designed for the efficient production and sanding of shaped furniture parts. Whether you're running batch or high-volume production of components like table legs, sofa feet, or other complex furniture pieces, the TC1000 offers exceptional performance, precision, and ease of use.
Equipped with an automatic hopper feed loading system, the TC1000 ensures continuous, hands-free operation, streamlining the production process. Its advanced capabilities include shaping, slotting, sanding, and drilling, making it the perfect all-in-one solution for your furniture part machining needs.
As standard, the machine is fitted with a milling head, a horizontal sanding head, and both vertical and horizontal router heads, providing flexibility for slotting or drilling operations. Thanks to its design, which allows the part to be worked between centres, the TC1000 can machine and sand all faces of a component, delivering a smooth, high-quality finish.
Technical Information
Latest state of the art digital controller mounted on an overhead swing arm
Maximum working length 1000mm
Automatic loading up to 100mm square
Manual feeding up to 130 square
Total number of axis 4
Headstock motor 3kw 0-200 rpm
Shaping head 7.5kw 3000 rpm
Sanding head 2.2kw 3000rpm
Horizontal router head 4.6kw 18000 rpm
Vertical router head 2kw 18000 rpm
Power & Air
Total installed power 25kw
Air supply 6 bar
Ethernet port for remote access included
Overall Dimensions
3600 x 2900 x 2100mm high
3,100 kg
