Fully automatic hopper fed CNC woodturning lathe, designed for the volume production of stair and furniture parts.

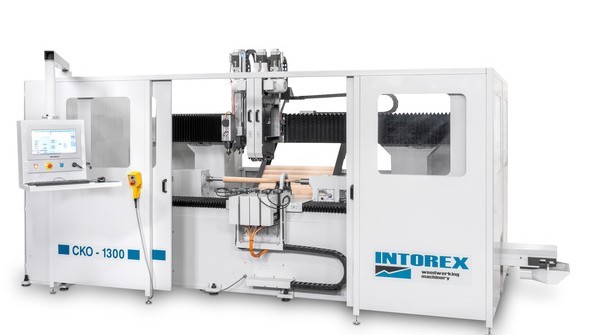

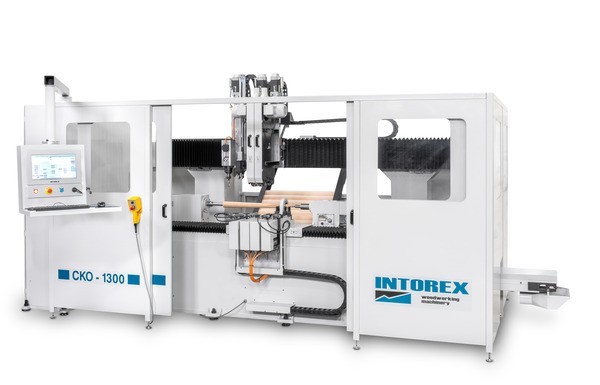

The Intorex CKO is a cutting-edge 9 axis CNC woodturning lathe, designed to deliver unparalleled speed and accuracy through advanced knife cutting technology, enhanced by a unique multi-axis sanding and router system. This innovate machine is ideal for producing a wide range of components, from baseball bats and chair legs to modern stair spindles and newel posts.

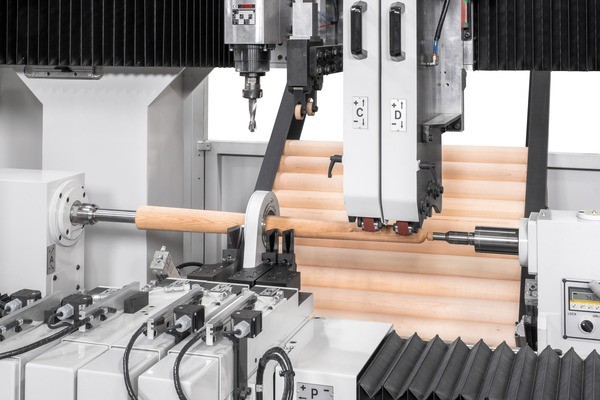

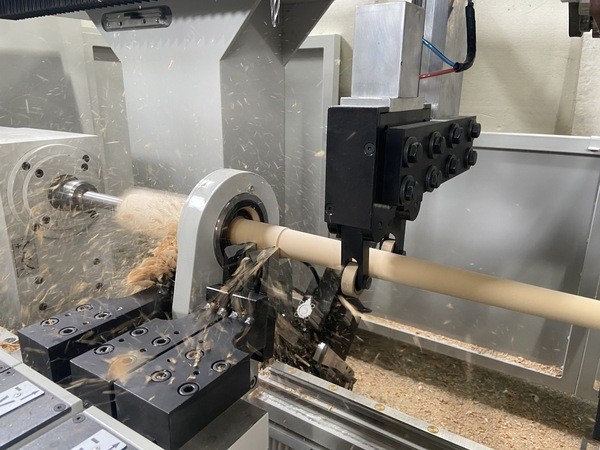

Equipped with an automatic hopper feed loader, the CKO ensures efficient and precise delivery of blanks between the headstock and tailstock, where they are securely clamped for machining. The machine features three CNC copiers dedicated to turning and two CNC copiers for sanding turned parts, providing a smooth and flawless finish. Additionally, the CKO includes an independent router head (without tool changer) for drilling, milling, and shaping operations, offering unmatched versatility.

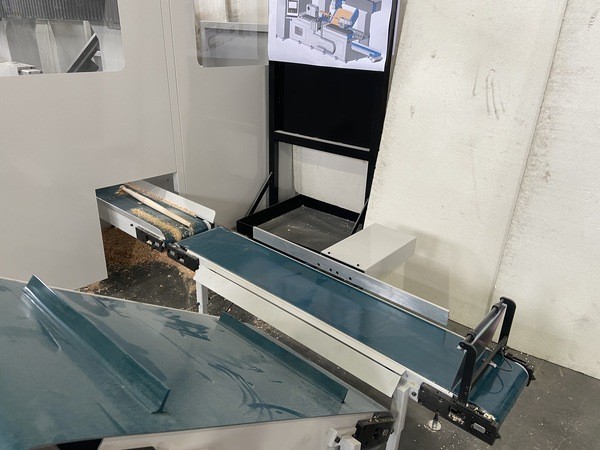

One of the standout features of the CKO is its ability to produce completely finished components that require no further work or handling, thanks to its advanced sanding capabilities. Once the final machining or sanding operation is completed, the component is efficiently ejected onto a transfer exit belt.
The robust construction of the CKO ensures long-lasting performance. It's structure consists of a machine bed with a sliding carriage on top, both crafted from electro-welded steel that is stabilised after each work phase to eliminate interior tension. This design guarantees stability and accuracy during all machining operations.
The Intorex CKO is a cutting-edge 9 axis CNC woodturning lathe, designed to deliver unparalleled speed and accuracy through advanced knife cutting technology, enhanced by a unique multi-axis sanding and router system. This innovate machine is ideal for producing a wide range of components, from baseball bats and chair legs to modern stair spindles and newel posts.
Equipped with an automatic hopper feed loader, the CKO ensures efficient and precise delivery of blanks between the headstock and tailstock, where they are securely clamped for machining. The machine features three CNC copiers dedicated to turning and two CNC copiers for sanding turned parts, providing a smooth and flawless finish. Additionally, the CKO includes an independent router head (without tool changer) for drilling, milling, and shaping operations, offering unmatched versatility.
One of the standout features of the CKO is its ability to produce completely finished components that require no further work or handling, thanks to its advanced sanding capabilities. Once the final machining or sanding operation is completed, the component is efficiently ejected onto a transfer exit belt.
The robust construction of the CKO ensures long-lasting performance. It's structure consists of a machine bed with a sliding carriage on top, both crafted from electro-welded steel that is stabilised after each work phase to eliminate interior tension. This design guarantees stability and accuracy during all machining operations.
Technical Information
Equipped with 9 different axes as indicated below:
- Axis A: Headstock rotation (controlled by NC digital brushless servos)
- Axis C: Sanding belt 1
- Axis D: Sanding belt 2
- Axis P: Main carriage in which are installed the copiers axes (U-V-W) and the steady.
- Axis U: Tool to cut the corners off or rounding the wood to the diameter of the steady ring
- Axis V: Roughing copier
- Axis W: Finishing copier
- Axis X: Main carriage on which are mounted the router and the two sanding belts copiers
- Axis Z: Router movement (Up-down)
All axes of the machine are moved through NC digital, brushless servo motors and by means of a precision ball screwball
Maximum working length 1300mm
Automatic feeding of blanks up to 100mm sq
Head stock motor 15.3kw rpm 0 to 5000rpm
Router head controlled in 2 axis 5.kw - 18,000 rpm
Digital Osai Open controller 6-axes with EtherCAT interface
Industrial panel PC 15,6" touch screen
A 5 axes SOLIDCAM 3D package composed of Solidworks (CAD) and SolidCAM (CAM). SolidWorks,allows to design in a very easy and intuitive way any kind of a 3D model, in addition to import a large variety of formats of CAD designs. SolidCAM, enables to machine complex 3D models in a very accurate and efficient way, interpolating 3,4 & 5 axis. SolidCAM 3D package integrates its customized post-processor
It includes:
- CN parameterization for dynamic high speed interpolations on asymmetric surfaces
- Machining and linking strategies for generation 3D high speed toolpaths
- Machine simulation
- Anti collisions system for tool, tool holder and heads
- Machines kinematics
- Specific post processor
Pneumatic steady with three rollers for turning long and thin parts
CNC copier in front of the steady to ensure that square is prepared for the steady rest
Steady rest
Roughing CNC copier
Finishing CNC copier
Two sanding CNC copiers
Router head
Hopper feed
