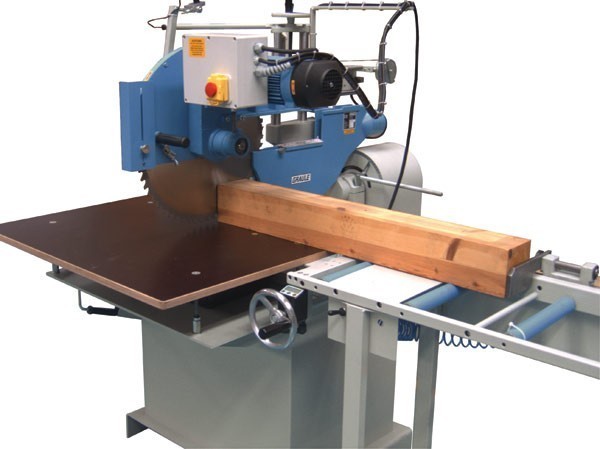

A large capacity heavy-duty radial arm crosscut with vertical tilting for straight or angled cutting. Available to buy online with immediate delivery.
Discover precision and efficiency like never before with this German built and designed crosscut saw, ideally suited for easy and accurate cutting of compound angles for furniture and joinery components.
Featuring a 520 mm diameter saw blade and 5kw brake motor, the Graule ZS200 delivers exceptional cutting performance with a unique pivoting saw unit, ensuring consistent cutting length time after time. Despite its compact design, the ZS200 boasts an impressive cutting capacity, making it a powerhouse in any workshop.
Its horizontal movement ranges from 45 - 90 - 25 degrees, with vertical tilting to left 90 - 45 degrees, providing versatility to tackle a variety of cutting tasks. Constructed with a sturdy cast iron body and steel base stand, this machine is built to withstand the rigors of daily use while maintaining stability and precision.
The Stromabstop Automatic Positioning Stop can be fitted to this crosscutting machine, saving you time and money by eliminating errors in measuring and inaccurate cutting.
Discover precision and efficiency like never before with this German built and designed crosscut saw, ideally suited for easy and accurate cutting of compound angles for furniture and joinery components.
Featuring a 520 mm diameter saw blade and 5kw brake motor, the Graule ZS200 delivers exceptional cutting performance with a unique pivoting saw unit, ensuring consistent cutting length time after time. Despite its compact design, the ZS200 boasts an impressive cutting capacity, making it a powerhouse in any workshop.
Its horizontal movement ranges from 45 - 90 - 25 degrees, with vertical tilting to left 90 - 45 degrees, providing versatility to tackle a variety of cutting tasks. Constructed with a sturdy cast iron body and steel base stand, this machine is built to withstand the rigors of daily use while maintaining stability and precision.
The Stromabstop Automatic Positioning Stop can be fitted to this crosscutting machine, saving you time and money by eliminating errors in measuring and inaccurate cutting.
Technical Information
Precision ball bearing movement on hardened steel runners
Sturdy cast iron construction with steel base stand
Heavy duty 5kW motor
Hydro check oil damper
1 x 520mm dia TCT x 4.4mm kerf x 50mm bore - 60 teeth WZ saw alternate bevel
50mm spindle diameter
+ 45 / 90 / -60 degrees horizontal movement (swivel)
Vertical tilting 90 - 45 degrees to left
Adjustable upper protection
Dust extraction outlet 100mm
Working height of table 900mm
Cutting Capacity
400 wide x 200mm deep at 90 degrees
280 wide x 200mm deep at 45 degrees
400 wide x 140mm deep at 45 degree vertical tilt
