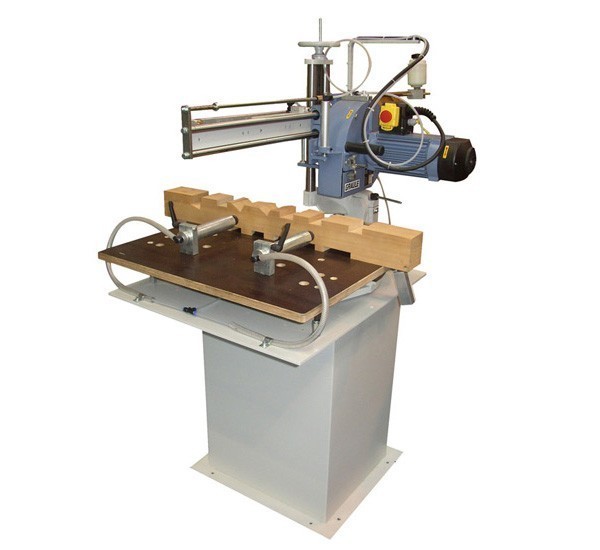

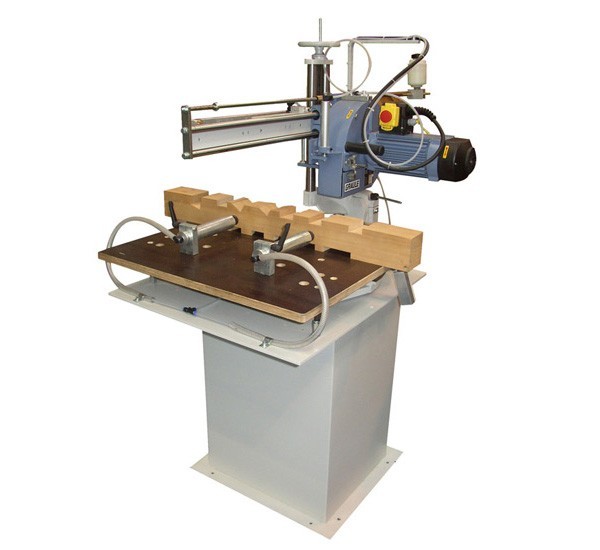

A dedicated machine for producing a straight trench / notch in a variety of timber products. Buy online now £9,200 plus VAT - available today with immediate delivery.
A dedicated machine for producing a straight or angled trench / notch in a variety of timber products used in general joinery, garden furniture, shed, roof truss and timber frame manufacturing. Also can be used for door framing, notching of roof bearers and for log cabin manufacture. As standard the machine is fitted with horizontal pneumatic workpiece clamps and also a hydrocheck damper control to give a smooth stroke action to the cutterhead movement.
*Please note: This machine is supplied without groover - visit Spare Parts to purchase your required groover size.*
A dedicated machine for producing a straight or angled trench / notch
Compact design
Pneumatic clamping
A dedicated machine for producing a straight or angled trench / notch in a variety of timber products used in general joinery, garden furniture, shed, roof truss and timber frame manufacturing. Also can be used for door framing, notching of roof bearers and for log cabin manufacture. As standard the machine is fitted with horizontal pneumatic workpiece clamps and also a hydrocheck damper control to give a smooth stroke action to the cutterhead movement.
*Please note: This machine is supplied without groover - visit Spare Parts to purchase your required groover size.*
Product information
Precision ball bearing movement on hardened steel runners.
Sturdy cast iron construction with steel base stand.
3kw motor.
Max tool dia 250mm
Bore of tool 40mm.
Handwheel rise and fall of cutter motor arm.
Max depth of trench / notch 60mm.
Width of trench / notch 60mm - in one pass.
Max. length of travel of tool 250mm.

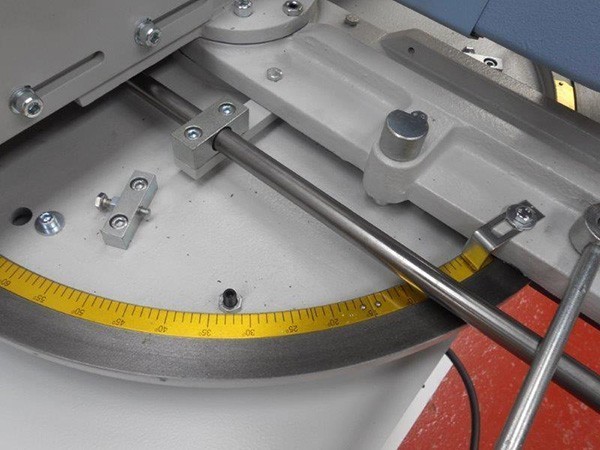

Horizontal angle setting 45 to 90 to 45 degrees
Vertical angle setting 90 to 45 degrees - left.
2 x horizontal workpiece clamps.

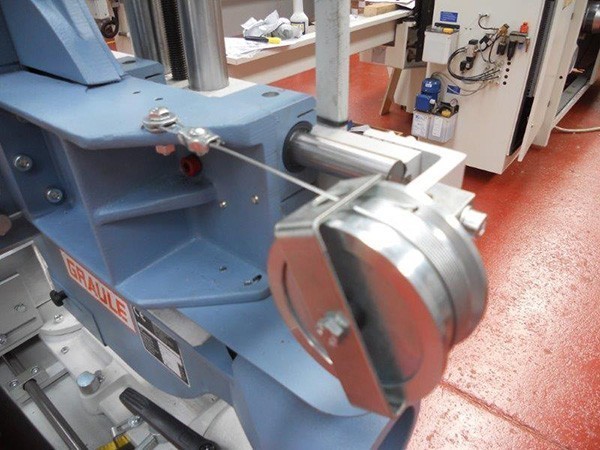

Hydrocheck damper to movement of cross cut arm.
Dust extraction outlet 100mm.
