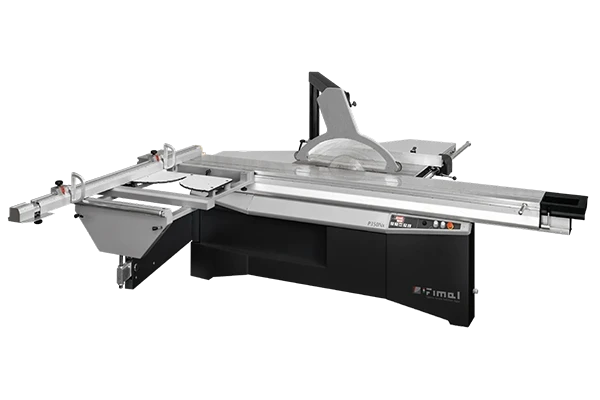

Fimal P350NX Sliding Table Panel Saw

Technical specifications:

Worktable dimensions 1000X560 mm

Sliding table dimensions 3200X350 mm

Max squaring capacity with scorer 3350 mm

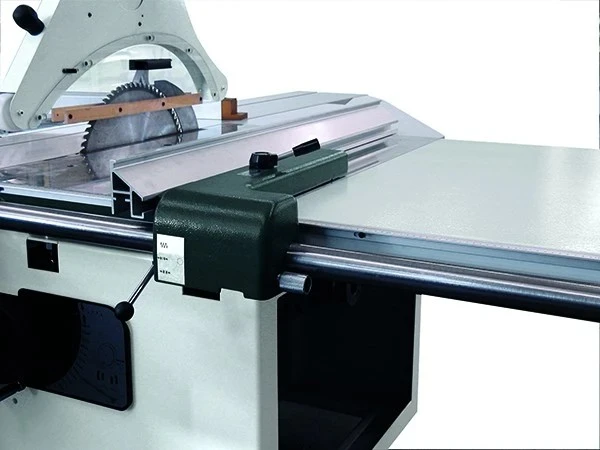

Cutting width max - blade to rip fence 1300 mm - manually adjusted - scale / pointer

Tilting blade 0.45 degrees

Max cutting height with blade at 90° d.350 mm 118 mm

Max cutting height with blade at 45° (d.350 mm) 81 mm

Max sawblade dia and bore size 350/30 mm

Saw rotation speeds 3000/4600 RPM

Dust extraction outlet on machine base d.100 mm

Main sawblade motor 4kW (5.5HP) 50Hz

Scoring motor 0.55kW (0.75HP)

Max squaring with stops 3600 mm

Standard equipment:

Carriage in anodised aluminium alloy sliding on high precision adjustable guides in hardened and ground steel

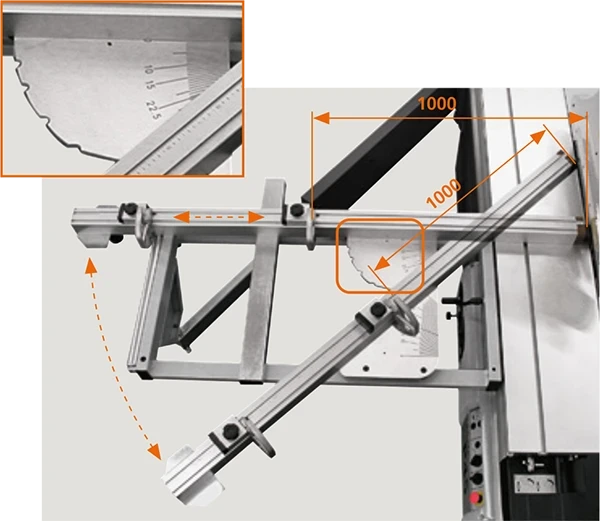

Mitre gauge on sliding table 90° quick locking and single degree tilting scale plus reference at 10, 15, 22.5, 30 and 45 degrees.

Quick fence positioning at 90° 10° 15° 22,5° 30° 45° keeping without change the stop position in reference to the blade position.

Anodised aluminium profiles

Table locking in any position

Main saw blade speed change accessed through the table

Sliding table with push handle

Eccentric workpiece clamp

Motorised blade rise / fall

Motorised sawblade tilting with electronic read out

Electrical safety micro switches on access door

Overload switch protection

Key locking master witch

Emergency stop

Electromagnetic main motor brake

CE compliant overhead saw guard with extraction point

Outfeed side extension table

Complete with set of sawblades - 350dx30x3.2, Z60 and 120dx20x3.5, Z24
