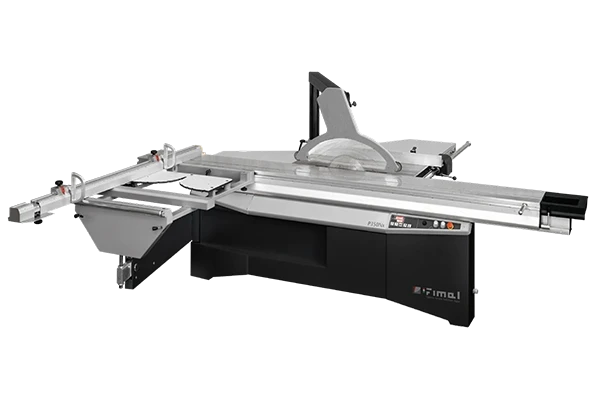

A mid range, industrial level sliding table panel saw for cutting sheet material or timber.
A mid range, industrial level sliding table panel saw for cutting sheet material or timber. Standard features include electric rise / fall / tilt of the saw group, table locking in any position and quick angle setting of the cross cut fence.
A mid range, industrial level sliding table panel saw for cutting sheet material or timber.
Precise cutting
Easy to use
Suitable for panels or sold wood
A mid range, industrial level sliding table panel saw for cutting sheet material or timber. Standard features include electric rise / fall / tilt of the saw group, table locking in any position and quick angle setting of the cross cut fence.
Worktable dimensions 1000X560 mm
Sliding table dimensions 3200X350 mm
Max squaring capacity with scorer 3350 mm
Cutting width max - blade to rip fence 1300 mm - manually adjusted - scale / pointer
Tilting blade 0.45 degrees
Max cutting height with blade at 90° d.350 mm 118 mm
Max cutting height with blade at 45° (d.350 mm) 81 mm
Max sawblade dia and bore size 350/30 mm
Saw rotation speeds 3000/4600 RPM
Dust extraction outlet on machine base d.100 mm
Main sawblade motor 4kW (5.5HP) 50Hz
Scoring motor 0.55kW (0.75HP)
Max squaring with stops 3600 mm
Carriage in anodised aluminium alloy sliding on high precision adjustable guides in hardened and ground steel

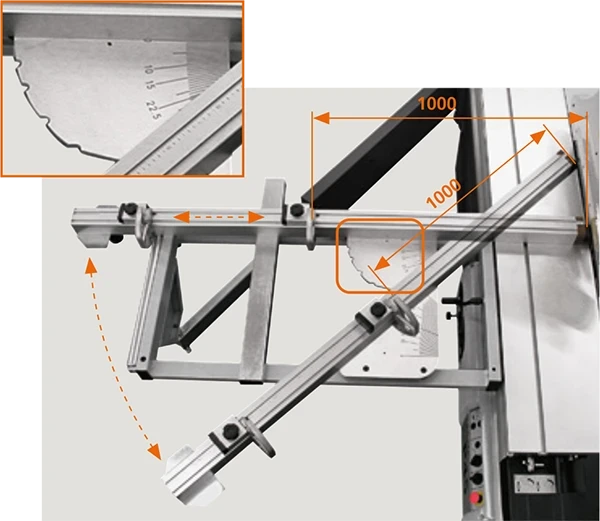

Mitre gauge on sliding table 90° quick locking and single degree tilting scale plus reference at 10, 15, 22.5, 30 and 45 degrees.
Quick fence positioning at 90° 10° 15° 22,5° 30° 45° keeping without change the stop position in reference to the blade position.
Anodised aluminium profiles
Table locking in any position
Main saw blade speed change accessed through the table
Sliding table with push handle
Eccentric workpiece clamp
Motorised blade rise / fall
Motorised sawblade tilting with electronic read out
Electrical safety micro switches on access door
Overload switch protection
Key locking master witch
Emergency stop
Electromagnetic main motor brake
CE compliant overhead saw guard with extraction point
Outfeed side extension table
Complete with set of sawblades - 350dx30x3.2, Z60 and 120dx20x3.5, Z24
