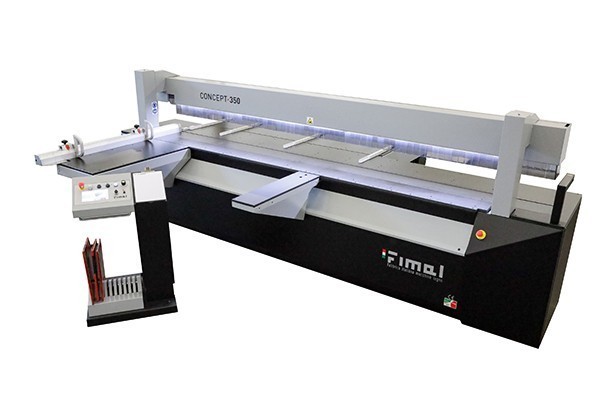

The Fimal Concept 350 Beamsaw has been designed to increase the productivity void between manual panel / wall saws and traditional beamsaws. Using a heavy duty moving saw carriage, powerful pressure beam and state of the art positioning system, the Concept 350 greatly improves accuracy, operator safety and is up to 3 x more productive. The processing of the cut materials can be further automated by using Fimal's cutting-edge board optimisation software which will reduce waste by nesting up to 500 parts and provide the operator with a step-by-step automated cutting sequence.
Concept 350 Beamsaw has been designed to increase the productivity void between manual panel / wall saws and traditional beamsaws.
Simple programming
Semi automatic operation
Compact in size
The Fimal Concept 350 Beamsaw has been designed to increase the productivity void between manual panel / wall saws and traditional beamsaws. Using a heavy duty moving saw carriage, powerful pressure beam and state of the art positioning system, the Concept 350 greatly improves accuracy, operator safety and is up to 3 x more productive. The processing of the cut materials can be further automated by using Fimal's cutting-edge board optimisation software which will reduce waste by nesting up to 500 parts and provide the operator with a step-by-step automated cutting sequence.
Table Size - 2650mm / 3250mm / 3850mm x 770mm
Cut Length - 2600mm / 3200mm / 3800mm
Blade Diameter - 300mm / 350mm
Cutting Height - 75mm / 100mm
Feed Speed - 0-40m/min
Blade Motor 7.5HP / 5.5KWHp
Ce norms

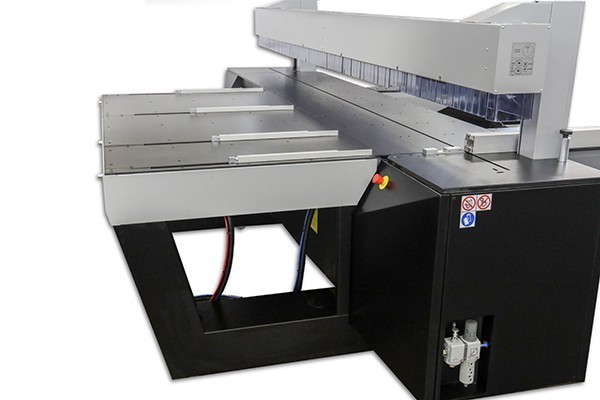

Top pressure full length of beam with anti intrusion guards front and rear
Automatic star-delta starting
Motorised rise and fall of saw blade with digital display

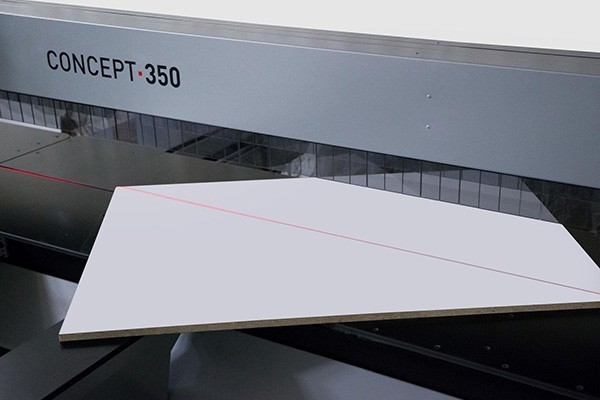

Alignment laser
Fixed front table 1000mm x 510mm with phenolic coating complete with crosscut fence 2500mm with 1 x sliding length stop.
2 x Sliding support tables 800mm x 200mm with phenolic coating
Multistop backfence with 4 rotating stops capable of rip cuts from 1mm - 2000mm
Photocell for automatic return of the blade carriage at end of board.
350mm Saw Blade
Office Optimising Software (Package "A")

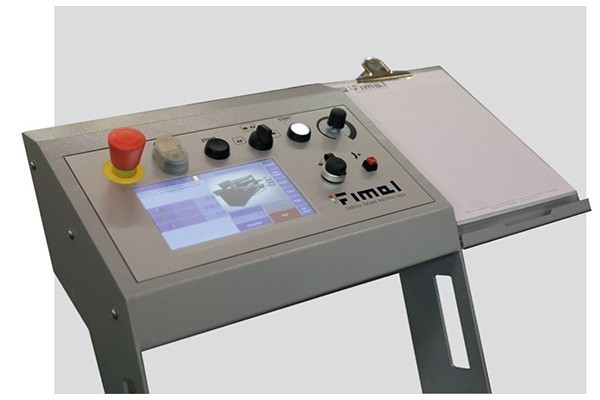

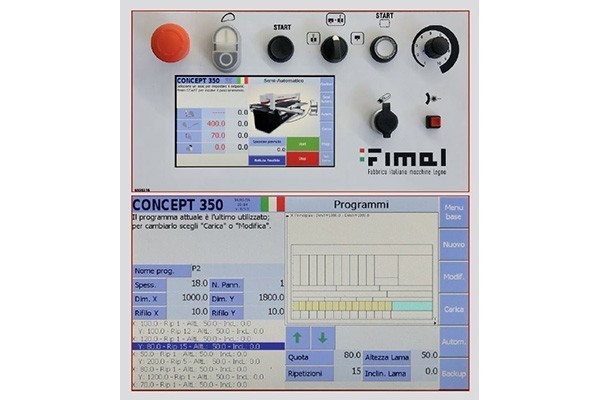

8" Colour touchscreen for programming with manual, semi-automatic and automatic modes
USB / Ethernet port for file transfer
Windows 10 operating system
Digital readout for the visualization of the measurement multistop fence
Digital readout for the visualization of the measurement of the tilting blade
Digital readout for the visualization of the blade height
Emergency stop button
Saw start / stop buttons
Three positions selector for cut with scoring , cut without scoring and only scoring
Start work cycle button
