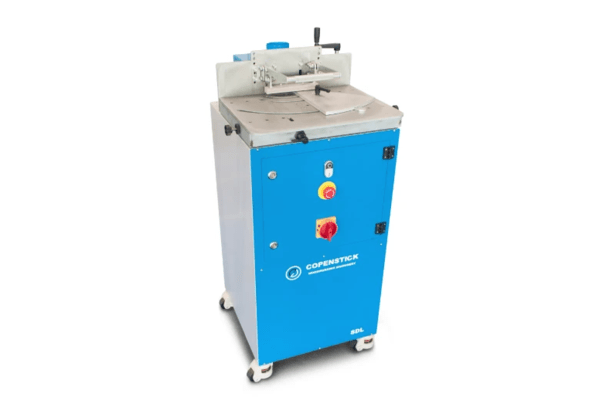

The Copenstick SDL has been designed for the accurate end-scribing of ready profiled material and glazing bar sections, the main characteristics of this machine are the two high-speed milling spindles fitted with ER25 collets and a height adjustment of 90mm, the motors rotate in opposite directions resulting in a perfect tear-free end-scribe/tenon.

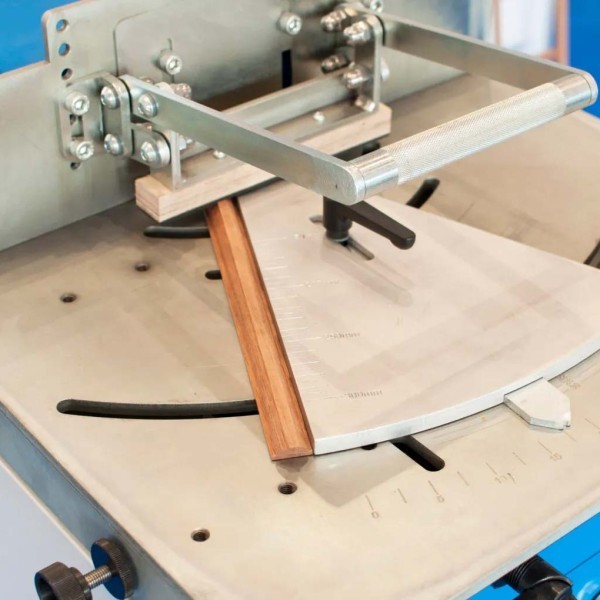

Angled cuts can be made as standard giving the operator the ability to work on intersections with a radius or any pitch from 0°- 45°Degs.
Single scribe tooling can be quickly set with the use of a digital mechanical readout, if you have multiple scribe tools there is no need for any tool changes as the machine can be fitted with stacked tooling allowing for several scribes to be fitted on the tooling shafts making for a very versatile set-up.
The Copenstick SDL has been designed for the accurate end-scribing of ready profiled material and glazing bar sections, the main characteristics of this machine are the two high-speed milling spindles fitted with ER25 collets and a height adjustment of 90mm, the motors rotate in opposite directions resulting in a perfect tear-free end-scribe/tenon.
The Copenstick SDL has been designed for the accurate end-scribing of ready profiled material and glazing bar sections, the main characteristics of this machine are the two high-speed milling spindles fitted with ER25 collets and a height adjustment of 90mm, the motors rotate in opposite directions resulting in a perfect tear-free end-scribe/tenon.
Angled cuts can be made as standard giving the operator the ability to work on intersections with a radius or any pitch from 0°- 45°Degs.
Single scribe tooling can be quickly set with the use of a digital mechanical readout, if you have multiple scribe tools there is no need for any tool changes as the machine can be fitted with stacked tooling allowing for several scribes to be fitted on the tooling shafts making for a very versatile set-up.
Power Supply – 240V 16Amps Single Phase 50Hz.
Spindle Speed – 12000RPM.
Spindle Motors – 2 X 1.5Kw.
Extraction Port- 80mm.
Tool Holding – ER25 Collets.
Table Travel – 100/180mm (trimmed to suit profile).
Height Adjustment of Spindle Shafts – 90mm (lockable).
Position Indicator – Digital (3mm per Rev).
Position Accuracy – 00.1mm.
Workpiece Clamp – Manual (adjustable).
Angle of Cut – 90/45Degs as per incrementation on table.
Glazing Bar Width – 18/32mm as per incrementation on table.
Workpiece Limit @ 90°Degs – 50 x 60mm.
Workpiece Limit @ 45°Degs – 30 x 60mm.
Maximum Tooling Diameter – 60mm.
Turret Stop – 3 positions (adjustable).
Working Height of Table – 895/935mm (adjustable).
Machine Dimensions – 480 x 490 x 1085/1125mm (adjustable).
Machine Weight – 120kg Approx.
Transportable – (optional) 4no. Machine Castors including levelling device for stability.
