INNOVATIVE WOODWORKING MACHINERY & EXPERTISE

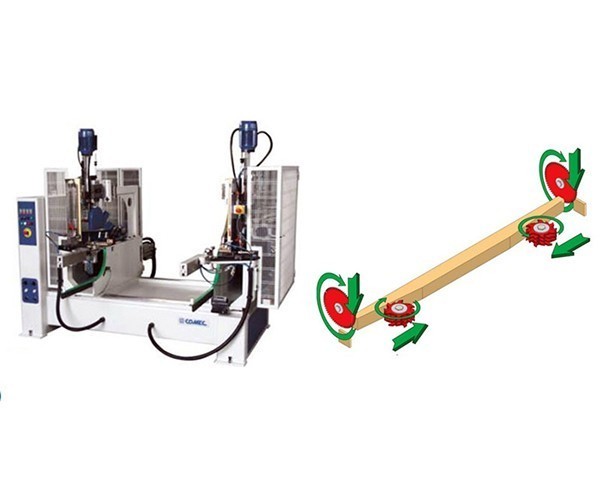

A heavy duty double ended profiling machine with automatic hopper feed that can be used for a variety of end machining operations on furniture components, garden products. E.G shaping, profiling, combing, jointing etc etc. Thanks to the hopper feed loading and ejection of the pieces the working cycle is fully automatic.
A double ended profiling machine with automatic hopper feed that can be used for a variety of end machining operations on furniture components, garden products etc.
High speed
Various machining applications
Double end operation
A heavy duty double ended profiling machine with automatic hopper feed that can be used for a variety of end machining operations on furniture components, garden products. E.G shaping, profiling, combing, jointing etc etc. Thanks to the hopper feed loading and ejection of the pieces the working cycle is fully automatic.
1 + 1 End Profiling Units with electro pneumatic stroke and hydrocheck control
2 + 2 End profiling units as above
Copying of end profile on interchangeable templates
2 x Head units with 4hp motors and 30mm dia shafts
Fixed left hand column to support head unit
Mobile right hand column to support head unit adjustable on precision guides
Length min 100mm max 1200mm
Width min 15mm max 100mm
Thickness min 15mm max 60mm
Pneumatic clamping of workpieces
Work cycle can be selected by PLC
According CE safety norms
Without profiling tools
