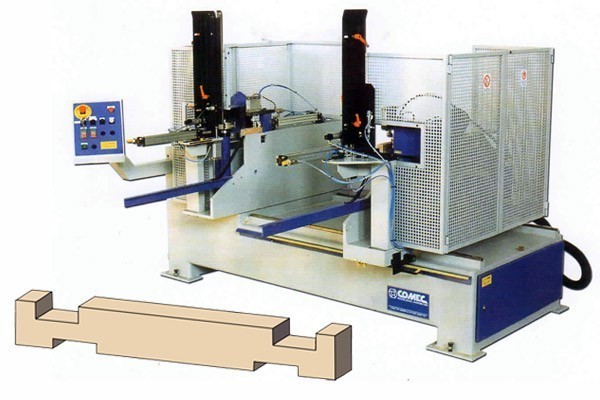

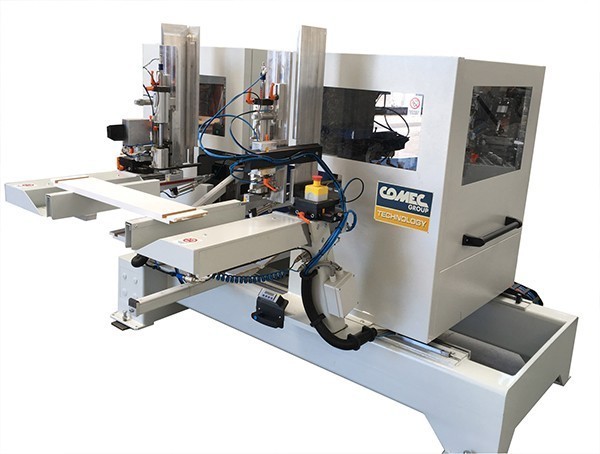

An automatic double ended hopper fed notching / trenching suitable for volume machining the notch in rebated or square dressed door frame heads (timber or MDF). As standard the machine is equipped with 2 x electro milling spindles adjustable in the X and Z axis to obtain the notch position / depth. The spindle cutter rotation, cutting cycle and antisplinter backing piece helps eliminate breakout. Thanks to the automatic hopper feed continuous production can be acheived. In instances were the head requires notching on top / bottom faces it can either be fed through twice or the machine equipped with 2+ 2 electron spindles meaning 4 notches can be machinined ay the same time. On request the FRT can be configured for other notching / trenching / end shaping operations.
An Automatic double ended hopper fed notching / trenching suitable for volume machining the notch in rebated or square dressed door frame heads.
Volume production
Auto loading
2 or 4 heads
An automatic double ended hopper fed notching / trenching suitable for volume machining the notch in rebated or square dressed door frame heads (timber or MDF). As standard the machine is equipped with 2 x electro milling spindles adjustable in the X and Z axis to obtain the notch position / depth. The spindle cutter rotation, cutting cycle and antisplinter backing piece helps eliminate breakout. Thanks to the automatic hopper feed continuous production can be acheived. In instances were the head requires notching on top / bottom faces it can either be fed through twice or the machine equipped with 2+ 2 electron spindles meaning 4 notches can be machinined ay the same time. On request the FRT can be configured for other notching / trenching / end shaping operations.
Heavy duty thick steael electro welded monobloc base
350 to 1000mm long
50 to 200mm width
20 to 40mm thickness
CA automatic hopper feed loader
1000mm length capacity (1200, 1500mm on request)
Automatic ejection of component to front of machine.
Right moving shoulder to set with - movement on linear slides / bearings with LCD digital readout. Left moving shoulder fixed.

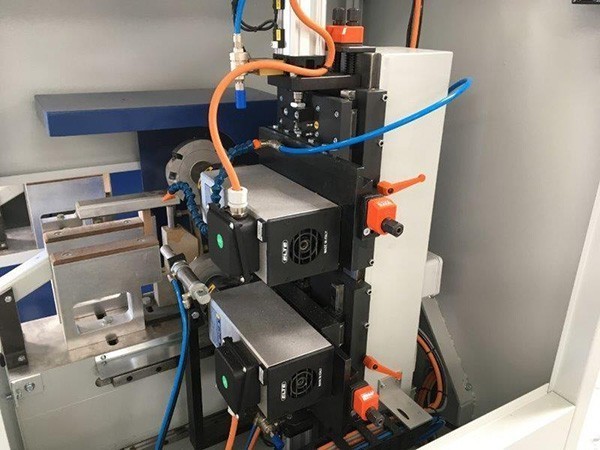

1 +1 top electro spindles 2.2kw / 9000 rpm. Adjustable on X and Z axis through Siko mechanical digital reeadout
PLC sequencing.
1 + 1 clamping / loading benches fixed to left / right shoulders with pneumatic cla,ps and antiplinter device - left / right side reference stops.
Average production 8 to 10 pieces per minute.
2 x TCT disposable tip cutter blocks.
CE safety guarding with electrically interlocked access doors.
